| ब्रांड नाम: | GQZ |
| मॉडल नंबर: | XSI140414N |
| न्यूनतम आदेश मात्रा: | 5पीसी |
| कीमत: | $359-$365 |
| डिलीवरी का समय: | आपके भुगतान प्राप्त होने के 3 कार्य दिवस |
| भुगतान की शर्तें: | टी/टी या वेस्टर्न यूनियन या पेपैल |

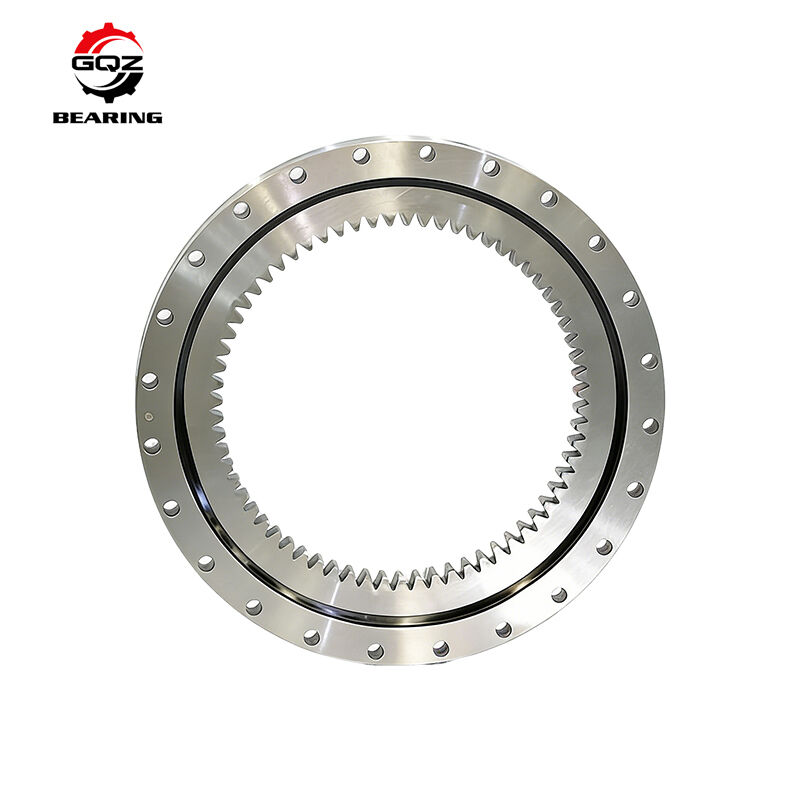

The XSI140414N Slew Ring Bearing is a compact, high precision cross roller bearing designed for CNC machine parts, rotary tables, robotics, and industrial automation systems. With dimensions of 325x484x56mm, this slewing bearing provides smooth rotation, high rigidity, and efficient load handling.
Built with a cross cylindrical roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for precision positioning systems, turntable bearings, and CNC machinery applications.
This compact cross roller slewing bearing offers stable performance, space-saving design, and long service life, widely used in automation equipment, CNC systems, robotics, and industrial machinery.
| Parameter | Specification |
|---|---|
| Model | XSI140414N |
| Inner Diameter (ID) | 325 mm |
| Outer Diameter (OD) | 484 mm |
| Width (H) | 56 mm |
| Type | Slewing Ring Bearing |
| Structure | Crossed Cylindrical Rollers |
| Material | Bearing Steel |
| Accuracy Class | P5 / P4 optional |
| Preload | Custom |
| Application | CNC Machine Parts, Robotics, Automation Equipment |
| INA | Weight (Kg) | Da | di | Di | da | La | Li | ni/na | A | B | C | D | Preload | do | m | z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSI140414N | 31 | 484 | 325 | 415 | 411 | 460 | 375 | 24 | 0.04 | 0.04 | 0.06 | 0.06 | 0.01-0.03 | 495 | 5 | 99 |
| XSI140544N | 43 | 614 | 444 | 545 | 541 | 590 | 505 | 32 | 0.04 | 0.04 | 0.07 | 0.07 | 0.01-0.03 | 630 | 6 | 105 |
| XSI140644N | 50 | 714 | 546 | 645 | 641 | 690 | 605 | 36 | 0.05 | 0.05 | 0.08 | 0.08 | 0.01-0.04 | 732 | 6 | 122 |
| XSI140744N | 58 | 814 | 648 | 745 | 741 | 790 | 705 | 40 | 0.05 | 0.05 | 0.09 | 0.08 | 0.01-0.04 | 828 | 6 | 138 |
| XSI140844N | 69 | 914 | 736 | 845 | 841 | 890 | 805 | 40 | 0.06 | 0.06 | 0.09 | 0.09 | 0.01-0.04 | 936 | 8 | 117 |
| XSI140944N | 76 | 1014 | 840 | 945 | 941 | 990 | 905 | 44 | 0.06 | 0.06 | 0.11 | 0.09 | 0.01-0.05 | 1032 | 8 | 129 |
| XSI141094N | 91 | 1164 | 984 | 1095 | 1091 | 1140 | 1055 | 48 | 0.07 | 0.07 | 0.11 | 0.11 | 0.01-0.05 | 1184 | 8 | 148 |
A1: It is a compact slewing ring bearing with crossed cylindrical rollers.
A2: Yes, it is designed for high-precision CNC and automation systems.
A3: Yes, customization is available for preload, accuracy class, and materials.
Upgrade your system with XSI140414N Slew Ring Cross Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
