| ब्रांड नाम: | GQZ |
| मॉडल नंबर: | JXR699050 |
| न्यूनतम आदेश मात्रा: | 5पीसी |
| कीमत: | $709-$729 |
| डिलीवरी का समय: | आपके भुगतान प्राप्त होने के 3 कार्य दिवस |
| भुगतान की शर्तें: | टी/टी या वेस्टर्न यूनियन या पेपैल |

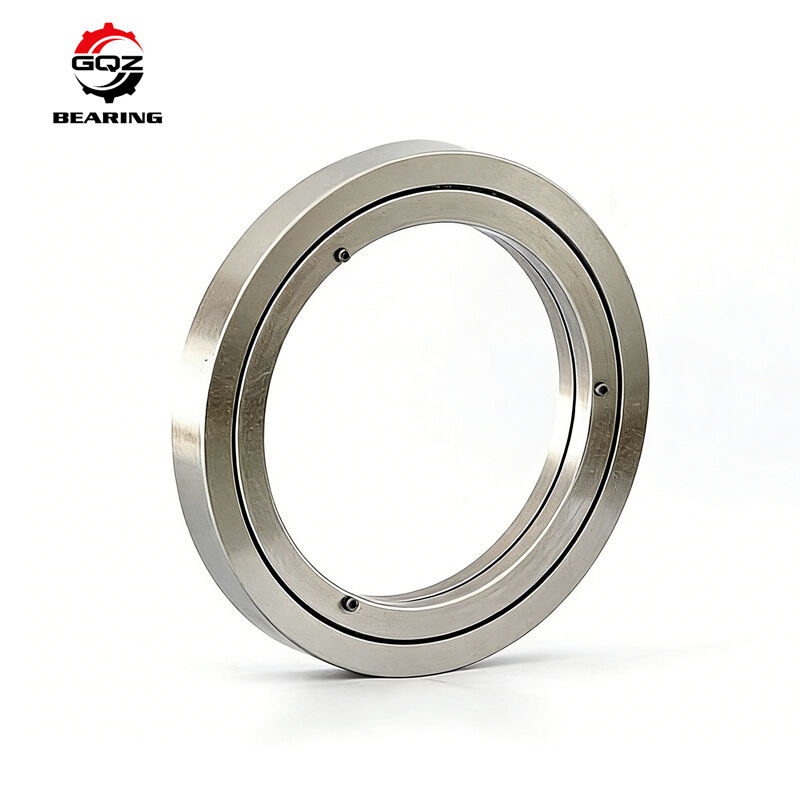

The JXR699050 Cross Tapered Roller Bearing is a high-precision metric bearing designed for CNC machine parts and advanced industrial systems. With dimensions of 370mm inner diameter, 495mm outer diameter, and 50mm width, it offers excellent rigidity, smooth rotation, and reliable load capacity.
Engineered for precision machining environments, this bearing ensures stable performance, accurate positioning, and long service life, making it ideal for high-end CNC and automation applications.
| Parameter | JXR699050 |
|---|---|
| Model | JXR699050 |
| Inner Diameter (ID) | 370 mm |
| Outer Diameter (OD) | 495 mm |
| Width (H) | 50 mm |
| Type | Cross Tapered Roller Bearing |
| Structure | Crossed Tapered Rollers |
| Material | Bearing Steel |
| Preload | Custom |
| Accuracy Class | P5 / P4 optional |
| Application | CNC Machine Parts, Automation Systems |
| Timken | KG | d | D | B | r | Cr (KN) | Co (KN) | Cr (KN) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| - | 4.9 | 150 | 230 | 30 | 1 | 95.2 | 156 | 111 | 279 | 1100 |
| - | 5.15 | 160 | 240 | 30 | 1.1 | 96.8 | 162 | 118 | 300 | 1000 |
| - | 6.7 | 200 | 280 | 30 | 1.5 | 102 | 175 | 120 | 320 | 9000 |
| XR496051 | 5.59 | 203.2 | 279.4 | 31.75 | 1.5 | 110 | 188 | 134 | 348 | 850 |
| XR496052 | 5.59 | 203.2 | 279.4 | 31.75 | 1.5 | 110 | 188 | 134 | 348 | 850 |
| - | 5.4 | 240 | 300 | 30 | 1 | 88 | 184 | 114 | 361 | 750 |
| - | 4.5 | 250 | 310 | 25 | 1 | 88 | 188 | 114 | 361 | 700 |
| - | 13 | 250 | 350 | 40 | 1.3 | 187 | 355 | 228 | 657 | 670 |
| JXR637050 | 12.5 | 300 | 400 | 36.492 | 1.5 | 183 | 355 | 223 | 657 | 560 |
| JXR637050 | 12.5 | 300 | 400 | 37 | 1.5 | 183 | 355 | 223 | 657 | 560 |
| JXR678054 | 38 | 300 | 480 | 60 | 1.5 | 258 | 495 | 35 | 920 | 600 |
| JXR652050 | 19.5 | 310 | 425 | 45 | 2.5 | 216 | 427 | 281 | 837 | 640 |
| JXR678052 | 32 | 330.2 | 457.2 | 63.5 | 3.3 | 264 | 515 | 312 | 954 | 620 |
| - | 27 | 350 | 470 | 50 | 3.3 | 308 | 635 | 376 | 1180 | 560 |
| JXR699050 | 30 | 370 | 495 | 50 | 3.3 | 93.6 | - | 119 | - | 600 |
| - | 15 | 400 | 480 | 40 | 1.1 | 216 | 497 | 281 | 957 | 430 |
| - | 46.5 | 400 | 550 | 60 | 2.5 | 429 | 920 | 523 | 1700 | 400 |
| XR736052 | 27.5 | 432.003 | 571.5 | 38.1 | 3.3 | 83 | 910 | 530 | 1600 | 400 |
| JXR766051 | 51 | 457.2 | 609.6 | 63.5 | 3.3 | 396 | 856 | 514 | 1680 | 420 |
| JXR766052 | 62 | 424.95 | 614.924 | 65 | 3.3 | 470 | 960 | 600 | 1720 | 380 |
| JXR820060 | 100 | 580 | 760 | 80 | 3.3 | 627 | 1380 | 765 | 2560 | 300 |
| JXR820061 | 100 | 580 | 760 | 80 | 6.4 | 627 | 1380 | 765 | 2560 | 300 |
| JXR836050 | 148 | 600 | 830 | 80 | 6.4 | 680 | 1460 | 820 | 2870 | 300 |
| JXR8444050 | 150 | 685.8 | 914.4 | 79.375 | 6.4 | 693 | 1660 | 900 | 3250 | 260 |
| JXR855053 | 150 | 685.8 | 914.4 | 79.375 | 3.3 | 693 | 1660 | 900 | 3250 | 260 |
| JXR855056 | 150 | 685.8 | 914.4 | 79.375 | 3.3 | 693 | 1660 | 900 | 3250 | 260 |
| JXR882054 | 185 | 901.7 | 1117.6 | 82.555 | 3 | 781 | 2060 | 1060 | 4290 | 200 |
| JXR882055 | 185 | 901.7 | 1117.6 | 82.555 | 3.3 | 781 | 2060 | 1060 | 4290 | 200 |
| JXR882058 | 158 | 939.8 | 1117.6 | 82.55 | 3 | 920 | 2580 | 1200 | 5000 | 200 |
| - | 215 | 950 | 1170 | 85 | 3 | 968 | 2690 | 1310 | 5600 | 215 |
| JXR889058 | 430 | 1028.7 | 1327.15 | 114.3 | 3.3 | 1230 | 3310 | 1600 | 6490 | 430 |
| JXR889059 | 358 | 1028.7 | 1327.15 | 95.25 | 3.3 | 1060 | 3100 | 1420 | 6020 | 450 |
| JXR889060 | 430 | 1028.7 | 1327.15 | 114.3 | 3.3 | 1230 | 3310 | 1600 | 6490 | 430 |
| - | 350 | 1270 | 1524 | 95.25 | 3.3 | 1300 | 3830 | 1760 | 2980 | 95 |
| JXR897051 | 500 | 1549.4 | 1828.8 | 101.6 | 3.3 | 1400 | 4510 | 1890 | 9400 | 80 |
| - | 675 | 1879.6 | 2197.1 | 101.6 | 5.4 | 1510 | 5240 | 2040 | 10900 | 43 |
| - | 1130 | 2463.8 | 2819.4 | 114.3 | 5.4 | 2330 | 8740 | 3150 | 18200 | 18200 |
Q1: Is JXR699050 a metric bearing?
A1: Yes, it is designed with metric dimensions (370x495x50mm).
Q2: Can it be used in CNC machine parts?
A2: Yes, it is ideal for high-precision CNC applications.
Q3: Do you support customization?
A3: Yes, we offer customization for preload, accuracy class, and materials.
Enhance your CNC system with JXR699050 Cross Tapered Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
